ELRA™ Endobiliary RFA Treatment
ENLARGE

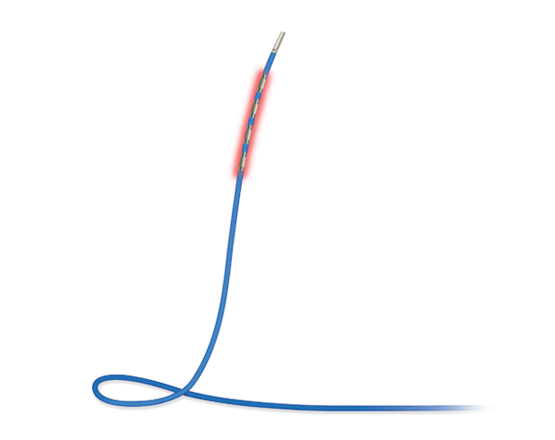

Endo Luminal Radiofrequency Ablation electrode
Video clip
Indication
Treating malignant biliary obstruction caused by cholangiocarcinoma or pancreatic cancer
Features
● Equipped with the optimized temperature mode to make safer procedures and to prevent tissue charring and perforation
● Multiple biopolar electrodes to make linear shape ablation
● A bipolar system and single use ONLY
● Both endoscopic and percutaneous approach
● Compatible with the VIVA combo™ generator ONLY
● Multiple biopolar electrodes to make linear shape ablation
● A bipolar system and single use ONLY
● Both endoscopic and percutaneous approach
● Compatible with the VIVA combo™ generator ONLY

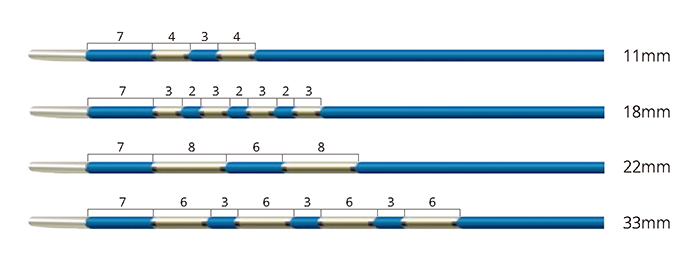

● Available in various sizes
● Ordering Information
Endoscopic Approach |
|||
Code |
Total Length (cm) |
Exposure Length (mm) |
Diameter |
7-2B11L |
175 |
11 |
7Fr (2.31mm) |
7-4B18L |
18 |
||
7-2B22L |
22 |
||
7-4B33L |
33 |
||
Percutaneous Approach |
|||
Code |
Total Length (cm) |
Exposure Length (mm) | Diameter |
7-2B11S |
40 |
11 |
7Fr (2.31mm) |
7-4B18S |
18 |
||
7-2B22S |
22 |
||
7-4B33S |
33 |
||
Articles
● Temperature-controlled intraductal radiofrequency ablation for hilar cholangiocarcinoma: pilot feasibility study
● Safety and efficacy of EndobiliaryRadioFrequency Ablation in Swine model
● Safety and efficacy of EndobiliaryRadioFrequency Ablation in Swine model
